NEW FOR 2023

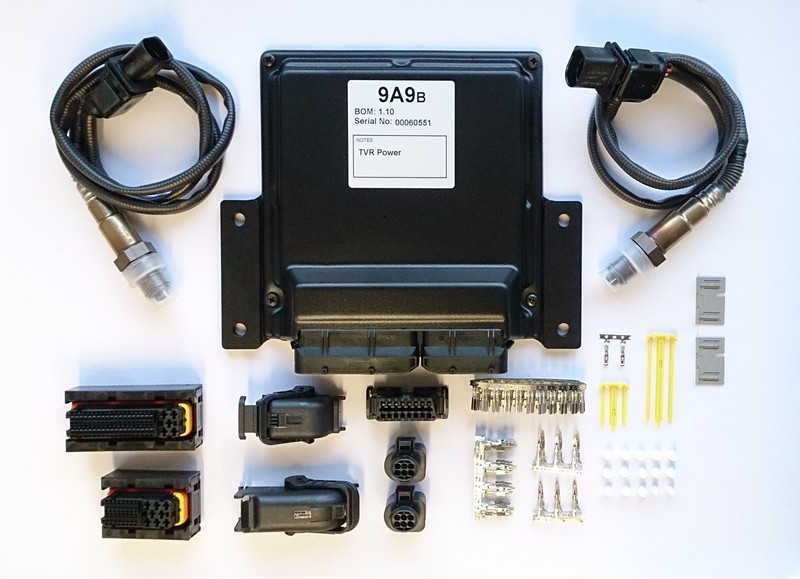

Our Gen 2 MBE ECU system for all Tvr applications (KITS ONLY)

ECU specs include:

• Wide band lambda input
• CAN BUS Compatible
• Traction Control (addon)
• Knock Retard (addon)
• Launch Control (addon)
• Fastest Processor
• Programmable interface for MBE TFT Screen
• Soft Fan Control
• Dual electronic throttle body Control

Rolling road session will require a bespoke map @ £650 plus vat Plus fuel

MORE SPECS HERE:

Features

This Engine Management System is designed to meet the requirements of high performance

engines typically found in motorsport and high performance road cars. The 9A9 can control

two drive by wire throttles, up to four individually controlled camshafts, two individually

controlled fuel channels utilising wideband lambda sensors and all whilst capable of meeting

most european emission rules.

Engine Type:

Engines up to 8 cylinders

Fuel Injection:

Sequential fuelling, engines up to 8 cylinders (high impedance injectors)

Ignition Output:

8 sequential ignition drives allowing wasted spark or up to 8 cylinders coil-on plug ignition. Built-in amplifiers for

direct ignition coil drive. Special order ECU for external amps.

Inputs

· Engine Speed

· 2 Pairs Throttle Position (TPS + Safety Backup)

· 2 Manifold Pressure

· 2 Mass Air Flow (PWM)

· 2 Pedal (includes Safety Backup)

· Barometric Pressure

· Engine Temperature

· Air Temperature

· Battery Voltage

· 2 Wide Band Lambda Sensors

· 2 Narrow Band Lambda Sensors

· Paddle shift up & down

· 10 Programmable Analog input options:

· Fuel Pressure

· Oil Pressure

· Oil Temperature

· Power shift

· Gear Position

· Pressure sensor (pneumatic gearbox control)

· EGT

· Launch

· Anti-Lag

· Integral 3 axis G Sensor

· 8 Programmable PWM Input

· 4 Cam position sensors (CPS)

· 4 Wheel Speeds

· 2 Mass Air Flow

· Pedal

Outputs

· Up to 8 Fuel Injector Drivers

· Up to 8 Integral Amplifier Ignition Drivers

· Up to 8 External Amplifier Ignition Drivers

· 30 Programmable output pins which consist of:

· 16 Programmable Digital Output pins:

· 6 Programmable High Side PWM Output pins

· 8 Programmable Low Side PWM Output pins

· As there are continually new functions added, you will need to download the latest version of Easimap to find out what options are available.

On-board Data Logging:

On board histograms

Engine run time hour clock

Vista/Windows7/windows 8 Mapping:

· Vista/Windows7/Windows 8 mapping via USB/CAN interface (hardware available separately)

· Graphical map editing

· Live mapping via the MBE985 mapping kit (wiring adaptor may be required)

· Professional mapping via the pro-CAN mapping kit using infinitely adjustable rotary encoders.

· Closed loop lambda mapping

CAN Data Interface:

· MBE CAN data to interface with 995 display

· Configurable CAN data stream for external logger or display

Software Upgrades:

9A9 ECUs have upgradable software to allow new & improved functions to be added

Please Note these are extra

3 wire lambda are used on most early Mk1 Tuscans (12mm lambda bosses) therfore they have to be modified to take 18mm bosses  (wide band lambdas) if your tvr has cats the engine has to be removed to enable use to remove the manifolds and tig weld 18mm bosses this is an aditional cost of 12 hrs labour @ £85 ph  ( early Tuscans) phone for more info

Cerbera V8 also have to have lambda boss upgrades to take wide band lambda 4hrs @ £85 ph

Modifications to the engine harness are extra if required £850 +vat

OPTIONAL Traction Control £1550 + vat

OPTIONAL Bespoke Mapping extra £650 + vat

Please note these normally take 5 working days to install

install £1200 + vat
